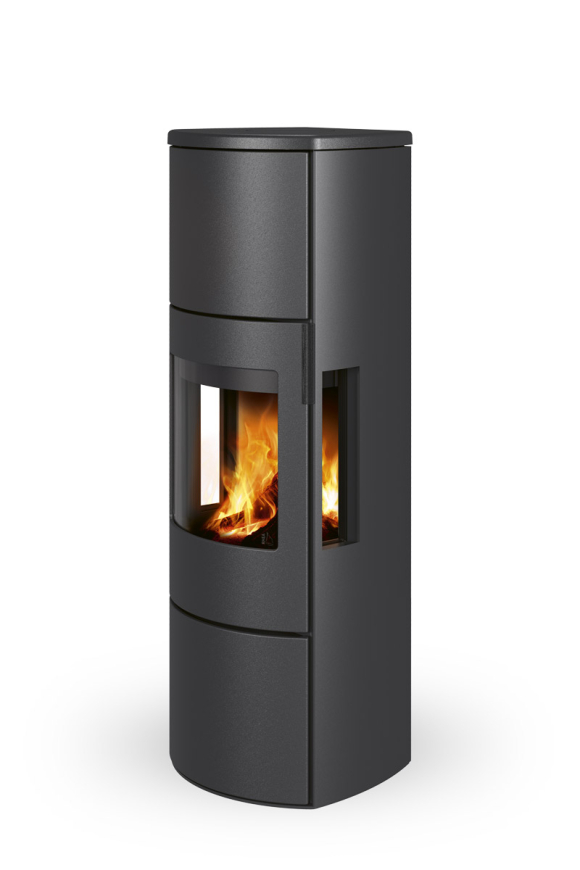

TYRIA H 3S Cast iron-Steel
The side glass TYRIA H 3S Cast iron-Steel stove is not only ready to radiate heat to all sides, but also to store it in the form of an accumulation above the firebox. This adds to the visual value as well as the utility value. Take advantage of all that modern and ecological wood heating has to offer.
- side glass model
- wide firebox for up to 33 cm logs
- preheated secondary air for clean glass
- easy control of air supply
- external air connection possible from bottom or rear side
- elegant black wooden handle
- combination of cast iron components and high-grade steel
- resistant chamotte burning chamber
- possibility to equip with accumulation blocks
Technical parameters
| height | 1405 mm |
| width | 471 mm |
| depth | 431 mm |
| weight | 183 kg |
| regulated output | 3,0-7,8 kW |
| flue outlet | 150 mm |
| external air inlet | 125 mm |
| axis height of rear outlet | 921/1194 mm |
| chimney draft | 12 Pa |
| efficiency | 78,7 % |
| average wood consumption | 1,8 kg/h |
|
|
|
Order code
- TYRYEHG 30
